IWATA Revolution HP-BR Airbrush (0,3mm) (R 2500) + Compressor PK-286 Starter Set

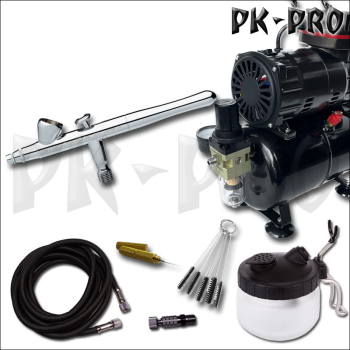

This airbrush starter set consists of:

1x IWATA-Revolution HP-BR Airbrush (0.3mm) - (R 2500)
1x PK-PRO Hobby Airbrush Compressor PK-286
1x PK PRO Airbrush Fabric Hose 1.8m 2x1/8" inner thread
1x PK PRO Quick Coupling NW 2.7 with 1/8" external thread
1x PK PRO Airbrush Nozzle Cleaning Needle
1x PK PRO Airbrush Cleaning Brushes Set (5x)
1x PK PRO Airbrush Cleaning Pot V2

IWATA-Revolution HP-BR Airbrush (0.3mm) - (R 2500)

The IWATA Revolution series is characterized by an optimal price-performance ratio. The technically high-quality paint spray guns are unique in their price class and suitable for both professionals and beginners.

- Flow system
- Nozzle: 0.3 mm
- Type: double action
- Gravity cup content: 1.8 ml
- Solvent-resistant PTFE needle seal

Airbrush compressor with compressed air tank - Fengda AS-189 (FD-189)

Powerful, lightweight and portable airbrush compressor with 3 L compressed air tank, for beginners and professionals! Very quiet, only approx. 47 dB. It works fully automatically and largely pulsation-free, is oil-free and therefore does not produce any contaminated air. Equipped with pressure reducer (including oil and water filter and manometer). Perfect work thanks to constant working pressure (regulator + compressed air tank).

The unit of this compressor is identical to the AS-18-2 (FD-18-2), except that this compressor has a compressed air tank. In contrast to the AS-186 (FD-186), this type of compressor has two freely selectable operating modes. Level 1 is an auto ON / OFF mode (automatic start / stop). The unit starts automatically at 2.8 bar pressure in the compressed air tank and stops automatically when the pressure in the compressed air tank reaches 4 bar. Level 2 is a continuous operation mode in which the unit works continuously and supplies air. When the maximum working pressure in the compressed air tank of 6 bar is reached, the safety valve opens and the excess pressure is blown off. This mode is suitable for larger airbrush work such as building terrain or priming several vehicles and should not be operated for longer than 15 minutes!

This control offers several advantages:

- Individual use of the compressor depending on requirements
- Even air volume flow for the user
- Protection of the unit (extension of the service life)
- Low volume during operation, so that the compressor can also be used at home in the evening
- Overheating of the unit is largely prevented.
Low volume during operation, can also be used at home in the evening.
Thanks to its low weight, it is portable and suitable for home and hobby use (model making).
Can be used for airbrush guns with nozzles from 0.15 - 0.4 mm.

Scope of delivery:

1x compressor with 3 L compressed air tank
1x pressure reducer, with filter and manometer
1x power cable (Schuko)
1x instructions (English)

Area of ??application

Can be used for airbrush guns with nozzles from 0.15 - 0.4 mm.
This compressor is particularly suitable for use in the tabletop and model building hobby.
Suitable for painting large models and individual miniatures.

Further areas of application: Suitable for airbrushes and can be used in model making, handicrafts, ceramics, pottery, cosmetics, fingernails, helmets, technical images, tanning, tattoo, textile, nail art studios, tattoo, working with watercolors, body colors, hobbies, model toys , Fingernail design. It can also be used as an air source in medical applications, environmental protection, aquariums, the food and chemical industry, laboratories, etc.

Technical data:

- Compressed air tank with 3 L volume
- Adjustable working pressure: 0 bar to 6 bar
- Printout: 20 - 23 L / min without load
- Pressure range of the pressure reducer: 0 - 10 bar (0-150 PSI)
- Safety / drain valve
- Air connection thread (compressed air): G 1/8 "AG (9.51 mm)
- Thermal protection (protection against overheating)
- Two-stage on / off switch
Switch stage 1 = auto ON / OFF or automatic start / stop (automatic start: from approx. 3 bar boiler pressure (43PSI), automatic shutdown: from 4 bar boiler pressure (57PSI))
Switch stage 2 = continuous operation at max. Working pressure (6 bar, safety valve blows off automatically above 6 bar)
- Power cable length: 1.9m
- Voltage: 220-240 V / 50 Hz
- Power: 0.123 kW (1/6 HP)
- Speed: 1450/1700 r.p.m.
- Volume: 47 dB / 1m (very quiet)
- Weight: 4.8 kg (light and portable)
- Dimensions: 32 x 14 x 31 cm / 12.6 x 5.5 x 12.2in
- 4 non-slip rubber feet
- Certificates: CE, GS, ETL, CETL, ROHS

ATTENTION: Due to delivery bottlenecks, the equivalent compressor from Wiltec "WT-Airbrush-Compressor-AS189" can be added to the set!
